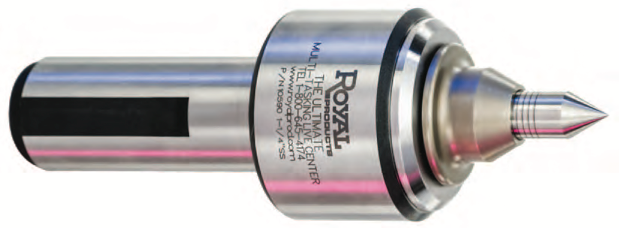

Royal Ultimate Multi-Tasking Live Center

Spring-Loaded Point for Lower Turret and Sub-Spindle Applications

The Royal Ultimate™ Multi-Tasking Live Center is proudly manufactured in the United States and designed specifically for the latest multi-tasking CNC machines with lower turrets and/or sub-spindles. It features a spring-loaded point that can compensate for the lack of hydraulic compensation found on tailstocks, providing protection for lower turrets and sub-spindles against overloading and potential crashes. Its durable design, including the exclusive Royal Roto-Shield™ and a long-lasting spring-loaded neoprene seal, ensures a longer operating life compared to other spring-type live centers. With a heavy-duty bearing configuration and optimized spring-pak, the Royal Ultimate™ Multi-Tasking Live Center is the ideal choice for all multi-tasking machines.

Benefits of ROYAL ULTIMATE™ MULTI-TASKING LIVE CENTER

1. All components are hardened and ground for strength and durability.
2. Extended point offers superior tool clearance for CNC applications.
3. +– 0.0001" TIR guaranteed.
4. Bearing life is significantly extended with the exclusive Royal Roto-Shield™ coolant slinger and a long-life, spring-loaded seal that is resistant to abrasion, high temperatures, and virtually all metalworking fluids.
5. Bellville disk springs allow the point to slide axially while ensuring that it remains seated in the workpiece center hole.
6. A large needle bearing supports the
   rear end of the point carrier for increased strength and vibration dampening.
7. A precision double-row angular contact bearing provides solid thrust radial load ratings.
