Collection: Royal Filtermist Mist Collectors: The World Leader in Metalworking Pollution Control

The Royal Filtermist is the industry standard for eliminating mist and smoke generated by all types of metalworking machinery. With over 170,000 units operating worldwide, this system utilizes advanced centrifugal impaction technology to provide a cleaner, safer, and more efficient shop environment.

Unlike media-type systems that rely on expensive, consumable filters that clog over time, the Royal Filtermist maintains a continuous high efficiency by using mechanical separation.

How It Works: The Principle of Centrifugal Impaction

The Royal Filtermist operates on a simple yet highly effective mechanical principle. It is designed witd only three main components: a drum, a motor, and the housing.

1. Suction: A high-speed internal drum creates a vacuum, drawing mist-laden air into the center.
2. Coalescing: Mist particles collide witd the rotating drum’s vanes and drum pads, causing them to coalesce into larger droplets.
3. Separation: Centrifugal force throws these droplets onto the inner wall of the housing.
4. Recycle: The collected oil or coolant is forced into a return channel and drained back to the machine’s tank for reuse.
5. Exhaust: Clean, filtered air is returned to the workshop through the top of the unit.

Key Benefits for Your Shop

• Improved Air Quality: Removes potentially dangerous particles from the air, protecting workers from respiratory risks and skin irritation.
• Reduced Accident Risks: Eliminates oily residue on floors and surfaces that leads to slips and falls.
• Lower Operating Costs: Recycled Coolant: Returns expensive oil and coolant directly to your machine.
  • HVAC Savings: Clean air is recycled back into the shop rather than exhausted outdoors, reducing heating and cooling loads.
• Low Maintenance: The centrifugal design doesn't "clog." Most units only require simple periodic cleaning or a quick pad change, ensuring consistent airflow.

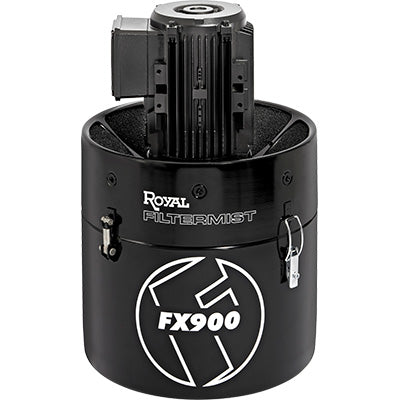

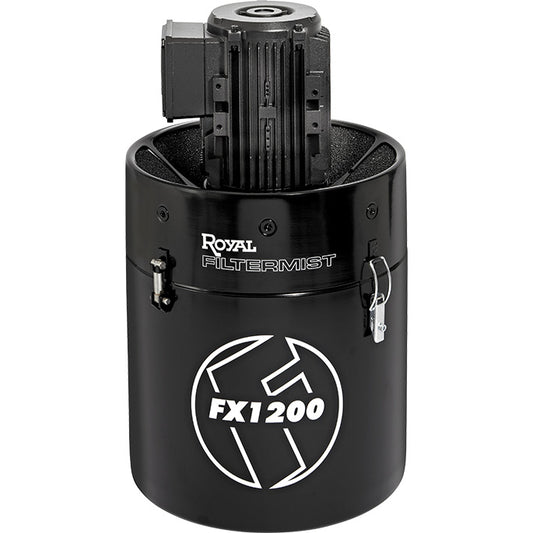

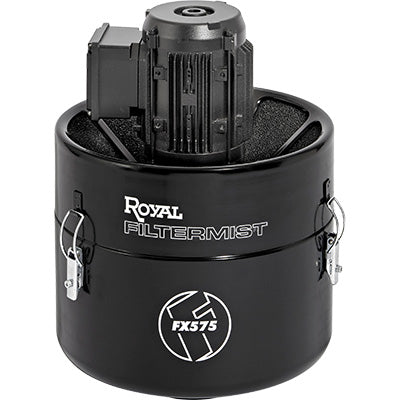

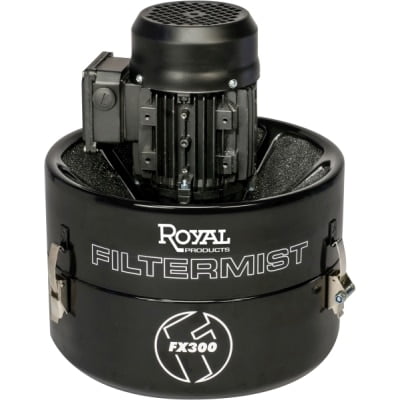

Royal Filtermist FX Series Sizing Guide

Choosing the right unit depends on the internal volume of your machine’s enclosure.

Versatility & Durability

• Stainless Steel Options: Type 304 stainless steel models are available for corrosive environments, such as aqueous parts washers or food processing lines.

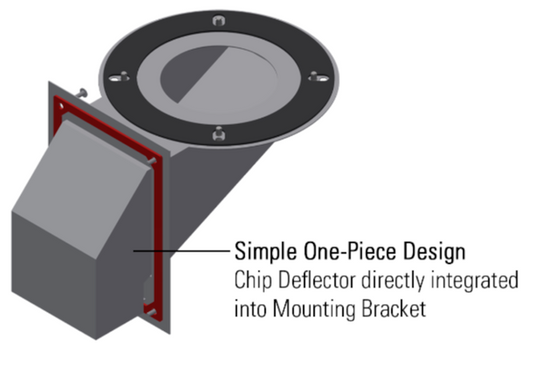

• Flexible Mounting: Units can be mounted directly to the top of the machine, on floor stands, wall brackets, or machine side-mounts.
• After-Filters: For applications producing heavy smoke or sub-micron particles, Royal After-Filters can be added to reach up to 99.95% efficiency.

The Royal Advantage

Every new Royal Filtermist unit comes with a Risk-Free Performance Guarantee. If you aren't 100% satisfied after 45 days, Royal will take it back for a full refund. Plus, most units currently include a FREE standard after-filter and drum pad set to cover your first year of maintenance.
