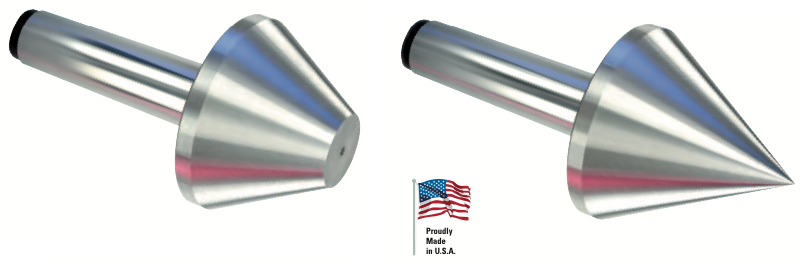

Royal Standard Pipe and Bull Head Live Center

Precision-made in the United States, these centers are expertly crafted for turning pipes, tubes, and parts with extra-large center holes. With two matched angular contact bearings, they offer superior thrust and radial load ratings. The head diameter is 1/8" larger than the nominal size, allowing for a broader range of workpiece sizes. The Bull Head design is specifically designed to be shorter than a traditional pipe head, reducing the chance of interference in blind center hole applications and ensuring maximum strength by positioning the load directly over the bearings. Extra large capacity models are also offered.

Benefits of ROYAL STANDARD PIPE & BULL HEAD LIVE CENTERS

1. Head O.D. is 1 ⁄ 8" larger than nominal size, enabling these centers to cover a wider range of workpieces and eliminating the need to buy the next larger size center.

2. Two matched angular contact bearings for solid thrust and radial load ratings.
3. +– 0.00005" TIR guaranteed.
4. Shank and head are hardened for strength and durability.
5. Steel shield and neoprene seal protect bearing assembly from coolant and chips for extended operating life.
