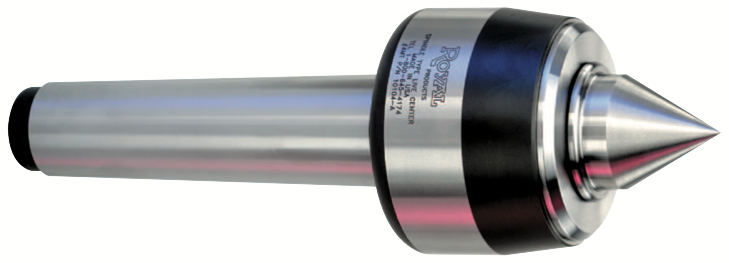

Royal Heavy-Duty Spindle Type Live Center

Expertly crafted in the United States, this top-selling model is a premier heavy-duty live center that is designed to handle almost all CNC and manual turning jobs. The heavy-duty precision bearings provide exceptional radial and thrust load capacities, while the thick, rigid point extends into the shank where it is supported by a large needle bearing for increased strength and vibration dampening. Additionally, the Roto-Shield™ coolant slinger and upgraded seal provide superior protection for the bearings, ensuring a longer lifespan. Both the body and point are meticulously hardened and ground to guarantee accuracy and durability.

Benefits of ROYAL HEAVY-DUTY SPINDLE TYPE LIVE CENTERS

1. Body and point are hardened and ground for strength and durability.
2. +– 0.00005" TIR guaranteed.
3. Bearing life is significantly extended with the exclusive Royal Roto-Shield™ coolant slinger and a long-life, spring-loaded seal that is resistant to abrasion, high temperatures, and virtually all metalworking fluids.
4. A precision, double-row angular-contact bearing provides high workpiece weight ratings for turning large, heavy parts. Smaller 2 & 3MT models are not typically used to support very large workpieces so they are instead equipped with a single-row bearing that turns more freely and allows for higher speeds.
5. A high capacity thrust bearing enables this center to handle extreme axial loads – one of the biggest potential causes of failure for any live center.
6. The thick, rigid point extends into the shank where it is supported by a large needle bearing for increased strength and vibration dampening.
