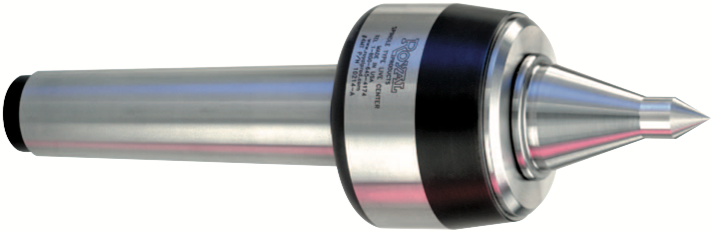

Royal Heavy-Duty CNC Spindle Type Live Center

Proudly crafted in the United States, our Royal Heavy-Duty CNC Spindle Type Live Center is a top choice for both manual and CNC turning tasks. Its superior radial and thrust load capacities are a result of the heavy-duty precision bearings, while the rigid point extends into the shank is further supported by a large needle bearing for increased strength and vibration dampening. To ensure long-lasting performance, our exclusive Roto-Shield™ coolant slinger and upgraded seal provide exceptional bearing protection. The body and point are expertly hardened and ground for unparalleled accuracy and durability.

Benefits of ROYAL HEAVY-DUTY CNC SPINDLE TYPE LIVE CENTERS

1. Body and point are hardened and ground for strength and durability.
2. Extended point provides extra tool clearance for CNC applications.
3. Body and point are hardened and ground for strength and durability.
4. +– 0.00005" TIR guaranteed.

5. Bearing life is significantly extended with the exclusive Royal Roto-Shield™ coolant slinger and a long-life, spring-loaded seal that is resistant to abrasion, high temperatures, and virtually all metalworking fluids.
6. A precision, double-row angular-contact bearing provides high workpiece weight ratings for turning large, heavy parts. Smaller 2 & 3MT models are not typically used to support very large workpieces so they are instead equipped with a single-row bearing that turns more freely and allows for higher speeds.
7. A high capacity thrust bearing enables this center to handle extreme axial loads – one of the biggest potential causes of failure for any live center.
8. The thick, rigid point extends into the shank where it is supported by a large needle bearing for increased strength and vibration dampening.
